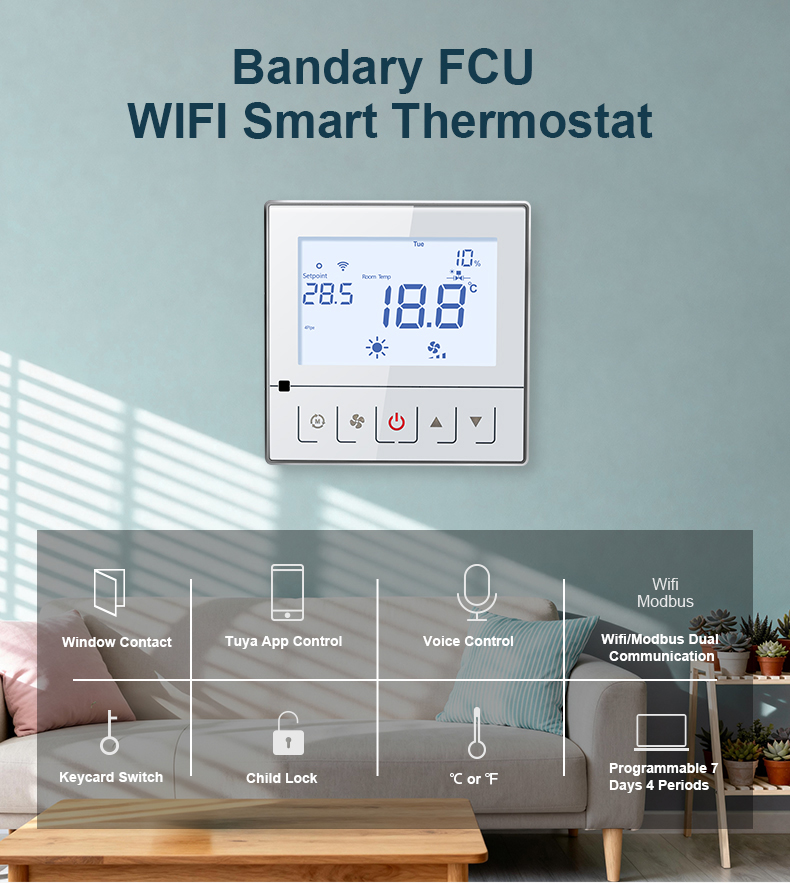

FC221Pro Fan Coil Thermostat

FC221Pro: 3 Speed Fan or EC Fan, On/off valve or 0-10V valve
Communication: Wifi(Tuya), RS485
Color: Black/White color
Window contact/roomcard contact input port
External sensor
Sensor Type: Temperature humidity sensor
Power Supply: 220VAC+10% 50/60HZ Or 24V AC/DC
Set Temp. Range: 1~50°C
Control Precision: ±1°C

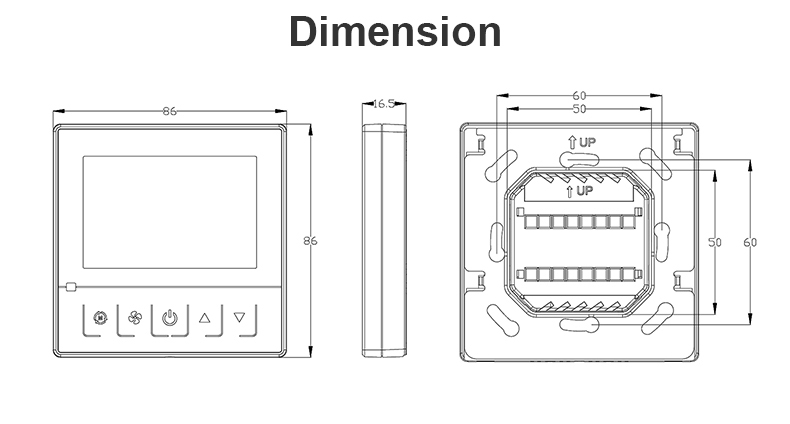

Shape Dimension: 86*86*14.5mm
Load Current: <3A
Power Box Dimension: 50*50*33mm
Viewing Dimension: 64*42mm
Net Weight: 220g

Inquiry

Overview
Inquiry
Related Products

Products Description

Power Supply	90Vac-265Vac 50Hz
Power Consumption	0.9VA (265V)
Protection	IP20
Available Temperature	1~50℃ (Factory Default: 16~30℃)
Control Precision	±1℃
Temperature Display Accuracy	±0.1℃
Ambient Temperature	-10~60℃
Ambient Humidity	5~95RH (Non condensing)
Storage Temperature	-10~60℃
Inputs	Passive Sensor

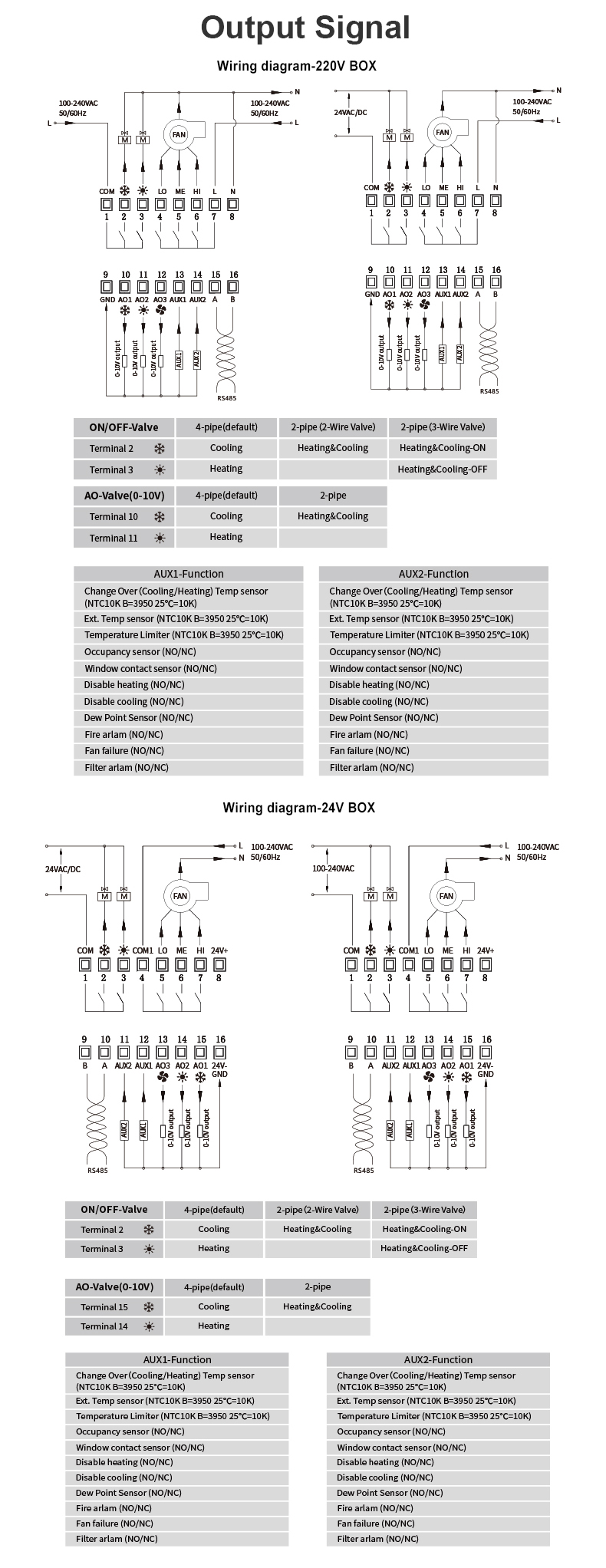

Outputs	Relays or 0-10v signal
Sensor Type	NTC10K
LCD	Touch Screen (67*45mm)
Enclosure Colour	Black
Enclosure Material	Fire proof ABS; Anti-reflective tempered glass
Installation Type	Flush mounted with standard EU box

FAQ

Q1. Who are we?

We are manufacturer with an independant R&D office in Shenzhen, China, we have worked in HVAC filed for more than
20-year, we provide OEM ODM service to meet with customer unique requirement, we have 1-plant and 3-office in Shenzhen, Dongguan and Suzhou, there are total about 150 people in our company.

Q2. How can you guarantee quality?
We provide 3-year long warranty for our product from shipping date. And all time life free charge upgraded service.

Q3. Can I order a sample for testing and checking quality?
Yes, for the first order, we welcome sample order to test and check the quality.

Q4. What about your leading time?
Stock items, we can send immediately. Mass production time is about 20-40 days according to your order quantity.

Q5. Why should you buy from us not from other suppliers?
Over 13 years of EMS manufacturer, we have three senior engineer has worked in HVAC filed for more than 20-year, All the products are origin design and development, we have applied related design and invention patents. All the products are personal tooling product. so that they have rich practical experience. Honestly, not big company, but we are accumulating small innovation from client feedback all the time. Dedicated to be reliable brand, we can grow together.

Q6. What services can we provide?
1. Before sale technical consultant service
2. In sale, technical supports
3.24-hour online technical supports after sales service
4. Online technical trainning
5. Custom design hardware and software development

Q7. What is the payment method you support?
Alibaba trade assurance, PayPal, Western Union, Bank T/T, Credit card etc.
